Debugging an Event Grid Triggered Azure Function

Event grid trigger Azure function

We can use Azure Event Grid with an Azure function as an endpoint to handle the events. With great development tools available for Azure functions with Visual Studio, we can debug into our function with a real/mock event grid event trigger.

This post needs an understanding of the basics of Azure functions development and event grid.

Debugging with a real event from Azure

For this technique, we need to allow Azure to be able to call the function which we have on our local machine. The steps to follow are:

  • Start debugging locally in Visual Studio (hit F5).

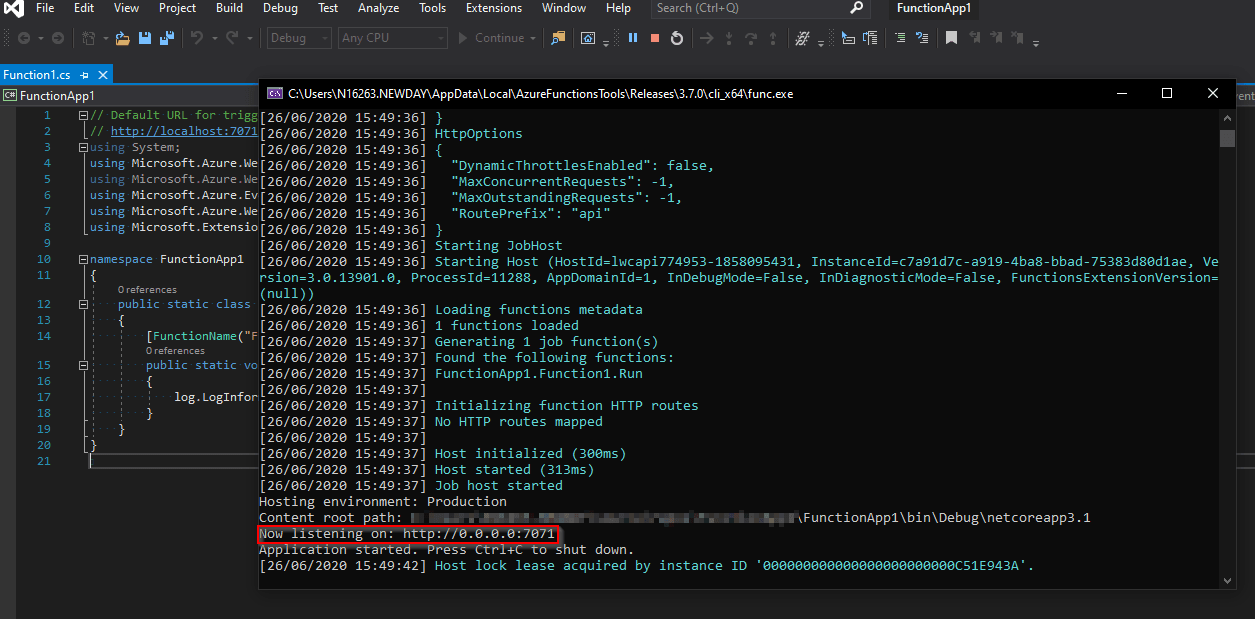

  • Note the port number from the debug console. It normally is 7071. Debugging with VS

  • Now we need to allow Azure to be able to call our function. For this, we use the ngrok utility. Get the utility then run the command

    ngrok http -host-header=localhost 7071

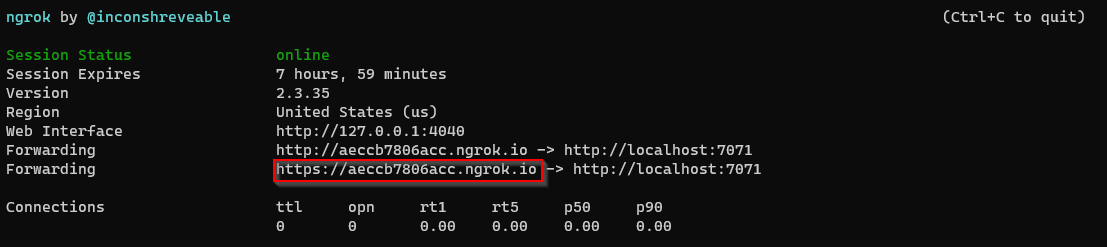

  • From the ngrok run output, copy the https URL. Ngrok console

  • We then use this on our Azure event grid subscription endpoint in the lines of

    https://aeccb7806acc.ngrok.io/runtime/webhooks/EventGrid?functionName=Function1

And that’s it. When there is a new event, ngrok will redirect the endpoint call to the function on our development machine.

Debugging locally with mock events

For locally creating mocked up events, we need to understand the schema of the event.

Creating the event JSON

Check the event schema on Microsoft documentation.

[
  {
    "topic": string,
    "subject": string,
    "id": string,
    "eventType": string,
    "eventTime": string,
    "data":{
      object-unique-to-each-publisher
    },
    "dataVersion": string,
    "metadataVersion": string
  }
]

Event data

The data element varies depending on the different event sources. Say for example we want to mock the events from Azure subscription as an event grid source. An example event can be found in Microsoft documentation.

It looks like

[{
  "subject": "/subscriptions/{subscription-id}/resourcegroups/{resource-group}/providers/Microsoft.Storage/storageAccounts/{storage-name}",
  "eventType": "Microsoft.Resources.ResourceWriteSuccess",
  "eventTime": "2018-07-19T18:38:04.6117357Z",
  "id": "4db48cba-50a2-455a-93b4-de41a3b5b7f6",
  "data": {
    "authorization": {
      "scope": "/subscriptions/{subscription-id}/resourcegroups/{resource-group}/providers/Microsoft.Storage/storageAccounts/{storage-name}",
      "action": "Microsoft.Storage/storageAccounts/write",
      "evidence": {
        "role": "Subscription Admin"
      }
    },
    "claims": {
      "aud": "{audience-claim}",
      "iss": "{issuer-claim}",
      "iat": "{issued-at-claim}",
      "nbf": "{not-before-claim}",
      "exp": "{expiration-claim}",
      "_claim_names": "{\"groups\":\"src1\"}",
      "_claim_sources": "{\"src1\":{\"endpoint\":\"{URI}\"}}",
      "http://schemas.microsoft.com/claims/authnclassreference": "1",
      "aio": "{token}",
      "http://schemas.microsoft.com/claims/authnmethodsreferences": "rsa,mfa",
      "appid": "{ID}",
      "appidacr": "2",
      "http://schemas.microsoft.com/2012/01/devicecontext/claims/identifier": "{ID}",
      "e_exp": "{expiration}",
      "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname": "{last-name}",
      "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname": "{first-name}",
      "ipaddr": "{IP-address}",
      "name": "{full-name}",
      "http://schemas.microsoft.com/identity/claims/objectidentifier": "{ID}",
      "onprem_sid": "{ID}",
      "puid": "{ID}",
      "http://schemas.microsoft.com/identity/claims/scope": "user_impersonation",
      "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier": "{ID}",
      "http://schemas.microsoft.com/identity/claims/tenantid": "{ID}",
      "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name": "{user-name}",
      "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn": "{user-name}",
      "uti": "{ID}",
      "ver": "1.0"
    },
    "correlationId": "{ID}",
    "resourceProvider": "Microsoft.Storage",
    "resourceUri": "/subscriptions/{subscription-id}/resourcegroups/{resource-group}/providers/Microsoft.Storage/storageAccounts/{storage-name}",
    "operationName": "Microsoft.Storage/storageAccounts/write",
    "status": "Succeeded",
    "subscriptionId": "{subscription-id}",
    "tenantId": "{tenant-id}"
  },
  "dataVersion": "2",
  "metadataVersion": "1",
  "topic": "/subscriptions/{subscription-id}"
}]

Final event JSON

We have to merge the above two JSON files to form the final one which should look like

{
    "subject": "/subscriptions/0not-real-subcription-id1/resourcegroups/resource-group-name/providers/Microsoft.Web/sites/webappname/config/appsettings",
    "eventType": "Microsoft.Resources.ResourceWriteSuccess",
    "eventTime": "2018-07-19T18:38:04.6117357Z",
    "id": "4db48cba-50a2-455a-93w4-de41a3b5b7f6",
    "data": {
        "authorization": {
            "scope": "/subscriptions/0not-real-subcription-id1/resourceGroups/resource-group-name/providers/Microsoft.Web/sites/webappname/config/appsettings",
            "action": "Microsoft.Web/sites/config/write",
            "evidence": {
                "role": "Contributor",
                "roleAssignmentScope": "/subscriptions/0not-real-subcription-id1",
                "roleAssignmentId": "4885d9f5deb94e8d9008e0489072b146",
                "roleDefinitionId": "b24988ac618042a0ab8820f7382dd24c",
                "principalId": "8c80ef36f16f4bd4b237799e24c43cb5",
                "principalType": "Group"
            }
        },
        "claims": {
            "aud": "https://management.core.windows.net/",
            "iss": "https://sts.windows.net/49d1-49bc-b63c/",
            "iat": "1593077152",
            "nbf": "1593077152",
            "exp": "1593081052",
            "http://schemas.microsoft.com/claims/authnclassreference": "1",
            "aio": "AUQAu/sdfdsf+5Bzb5OcRKrcNyHu5w==",
            "http://schemas.microsoft.com/claims/authnmethodsreferences": "pwd,rsa,mfa",
            "appid": "1950a258-227b-4e31-a9cf-717495945fc2",
            "appidacr": "0",
            "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname": "Priyadarshee",
            "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname": "Dushyant",
            "groups": "76e57378-7986-491e-sdf-6220d6a8bb13",
            "ipaddr": "193.117.214.98",
            "name": "Priyadarshee, Dushyant",
            "http://schemas.microsoft.com/identity/claims/objectidentifier": "f0dc630a-b9b9-498a-945d-5c86dd3a9cbc",
            "onprem_sid": "S-1-5-21-1102854320-3722712898-1019641694-40955",
            "puid": "10032000C1028AF8",
            "http://schemas.microsoft.com/identity/claims/scope": "user_impersonation",
            "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier": "RctV-GGTWjD_kITSHLSCIJJD4hwLLdO4o7J7Vi5NT5Q",
            "http://schemas.microsoft.com/identity/claims/tenantid": "49d1-49bc-b63c",
            "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name": "abcdef@abc.def.co.uk",
            "http://schemas.xmlsoap.org/ws/2005/05/identity/claims/upn": "abcdef@abc.def.co.uk",
            "uti": "fPTvpJqJ-kib1Ui5IfnqAA",
            "ver": "1.0",
            "wids": "88d8e3e3-8f55-4a1e-953a-9b9898b8876b"
        },
        "correlationId": "92db1c00-aa0d-4044-80b0-de64673e1295",
        "httpRequest": {
            "clientRequestId": "3da63058-b6b6-4f1e-a6aa-28420bab4594",
            "clientIpAddress": "193.17.210.98",
            "method": "PUT",
            "url": "https://management.azure.com/subscriptions/0not-real-subcription-id1/resourceGroups/resource-group-name/providers/Microsoft.Web/sites/webappname/config/appsettings?api-version=2018-11-01"
        },
        "resourceProvider": "Microsoft.Web",
        "resourceUri": "/subscriptions/0not-real-subcription-id1/resourceGroups/resource-group-name/providers/Microsoft.Web/sites/webappname/config/appsettings",
        "operationName": "Microsoft.Web/sites/config/write",
        "status": "Succeeded",
        "subscriptionId": "0not-real-subcription-id1",
        "tenantId": "49d1-49bc-b63c"
    },
    "dataVersion": "2",
    "metadataVersion": "1",
    "topic": "/subscriptions/0not-real-subcription-id1"
}

We would want to replace the values in the JSON as to what our function is likely to expect.

Using postman to create the request

Now using postman we create the POST request.

  • We use the URL http://localhost:7071/runtime/webhooks/EventGrid?functionName=Function1

  • Add the following headers

    Content-Type = application/json
aeg-event-type = Notification

    These headers are discussed briefly in Event hub as an event handler for Azure Event Grid events.

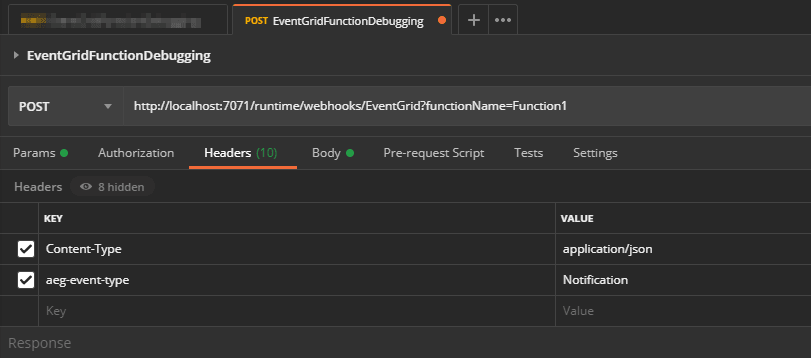

    Postman headers

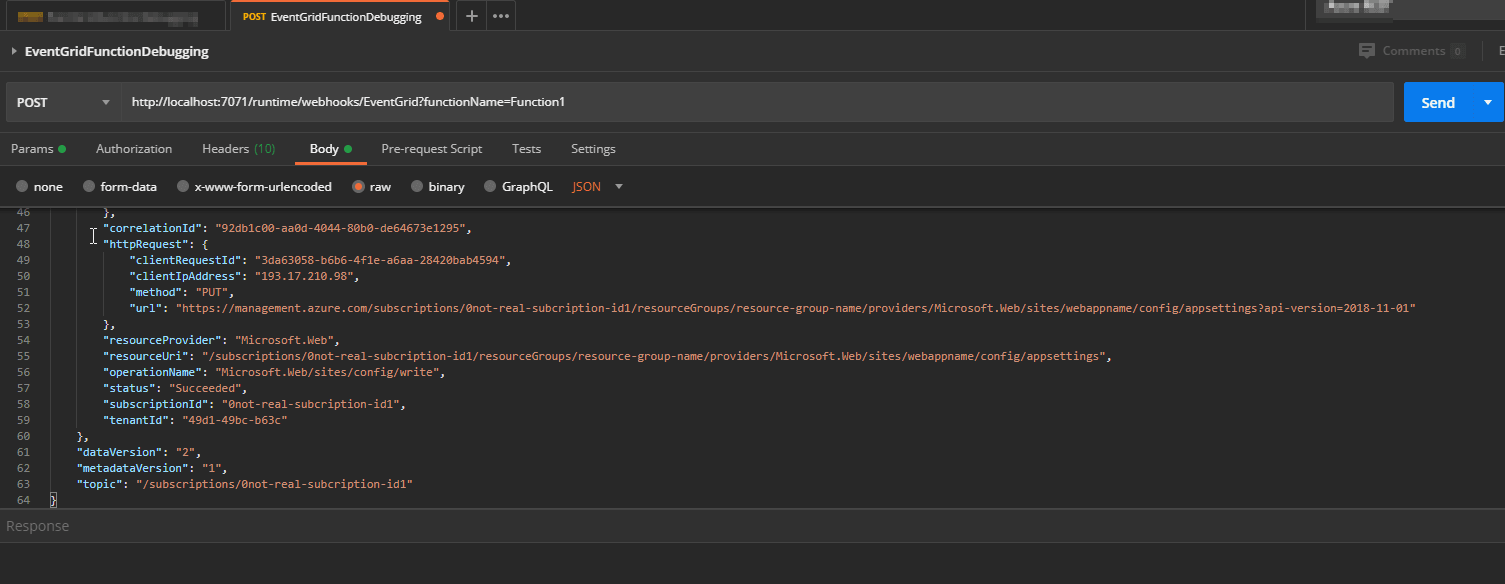

  • We copy paste the json we created earlier into request body Postman body

And that’s it, when we click Send, we will hit any breakpoints on our Visual Studio instance.

Conclusion

This has been a learning experience for me and hence considered sharing if it is useful for someone else. I must say the documentaion provided by Microsoft is very useful in learning these among other tricks. There is also a great blog post by Paul Mcilreavy regarding this.

Overall, these techniques make debugging experience so much easier and we have all Visual Studio tools at our disposal in these scenarios as well. Definite win-win.
